CNC Fiber Laser Pipe Cutter

Features Of Fiber Pipe Cutter

• High-precision cutting, X/Y-axis positioning accuracy ±0.05/1000mm, repeated positioning accuracy ±0.03/1000mm
• 3000W high-efficiency fiber laser, excellent beam quality, smooth and burr-free cutting surface
• Windows-based CNC system, support graphic direct retrieval, one-key calibration, easy operation
• Overhead cutting function, tail material as small as 2-3cm, effectively reduce material waste
• Stress-relieved welded bed and beam, high rigidity, with automatic lubrication for long-term stability
• Double pneumatic full-travel chuck, auto center positioning, compatible with Φ20-240mm pipes and various profiles
• Equipped with travel limit and hard protection devices, safe and reliable for continuous operation

Technical Parameters

Pipe processing dimensions：Round pipe Φ20-Φ240mm; Square tube, angle steel, channel steel, H-beam cuttable; L ≤ 6000mm

X-axis travel：240mm

Y-axis travel：6500mm

Z-axis travel：120mm

Tailing length：Min 20mm

Main machine overall dimension (L×W×H)：About 8200×1350×1750mm

Laser power：3000W

Complete power：15Kw

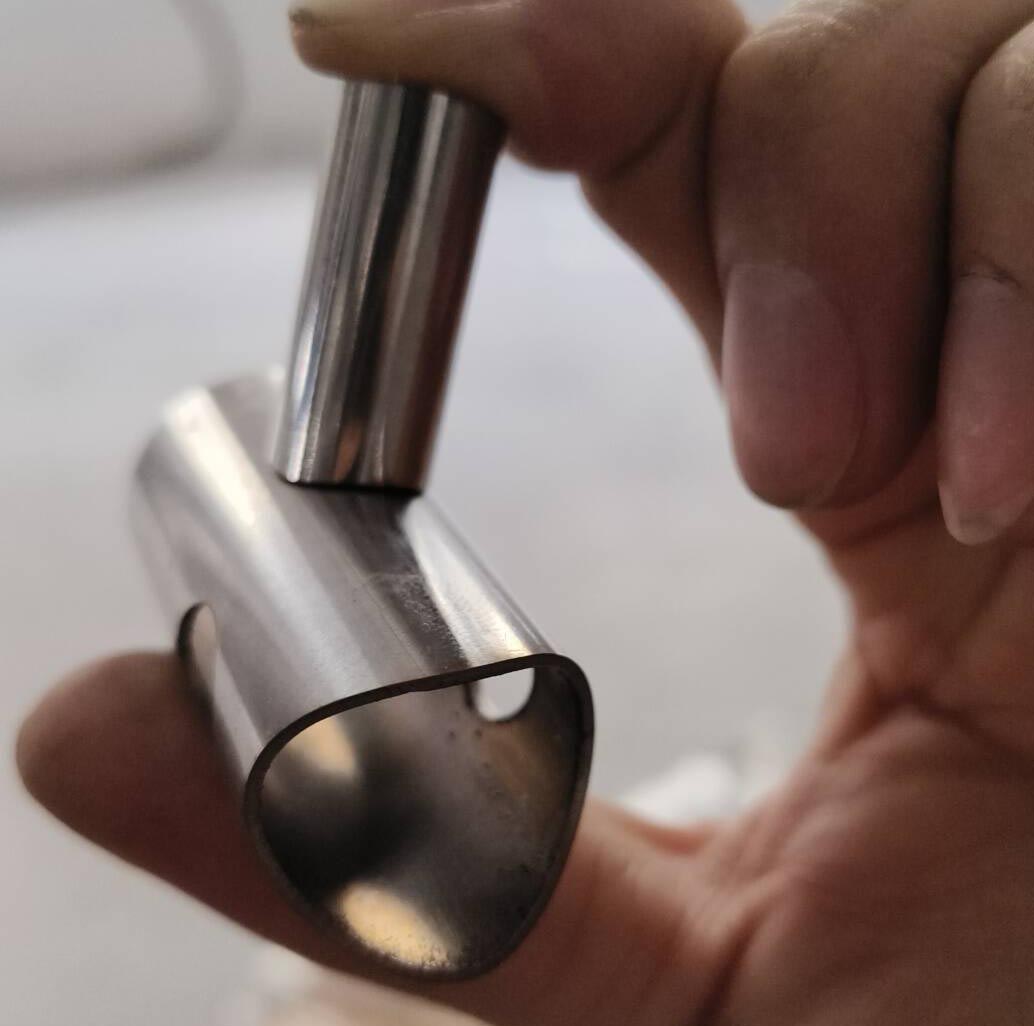

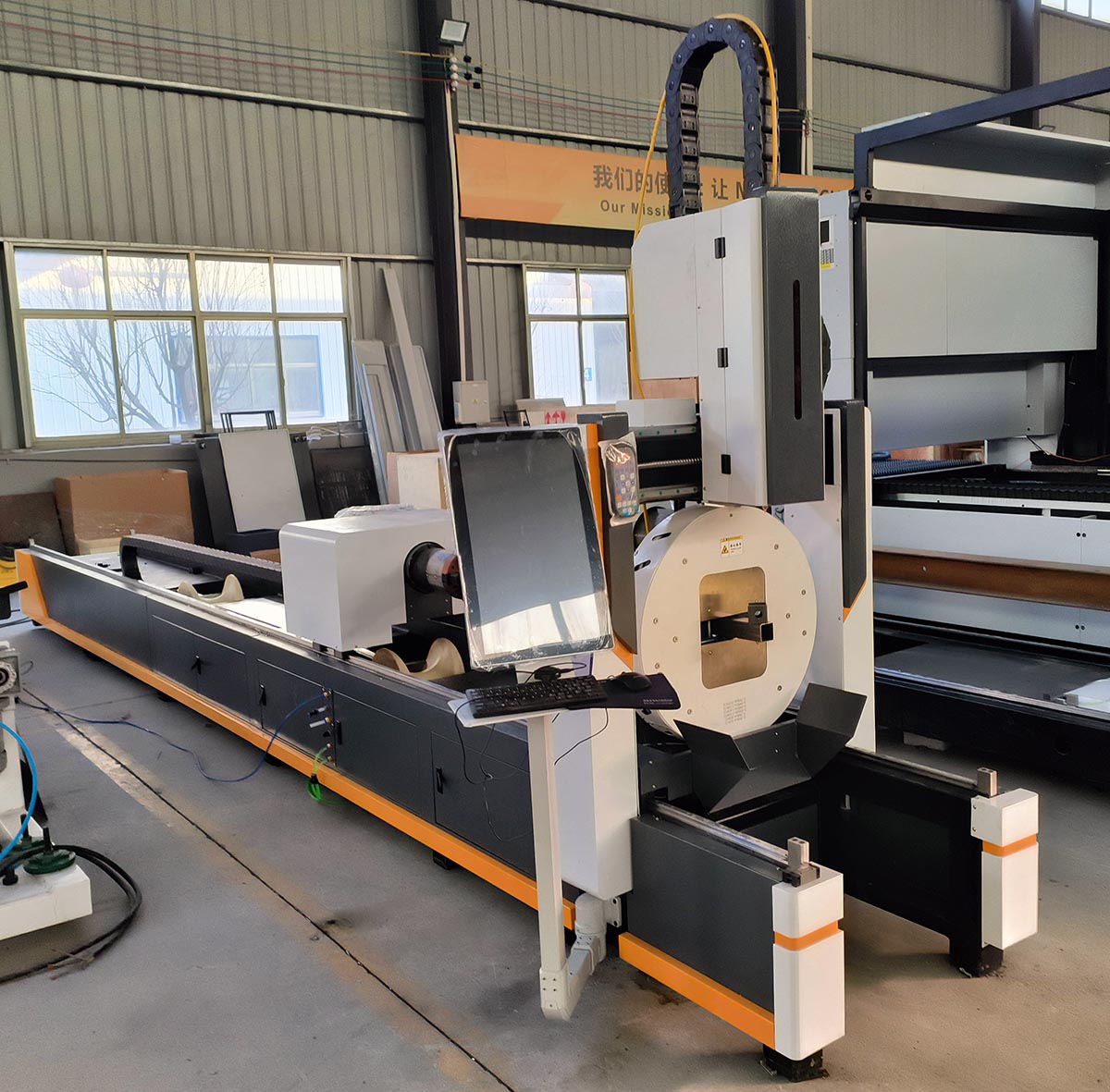

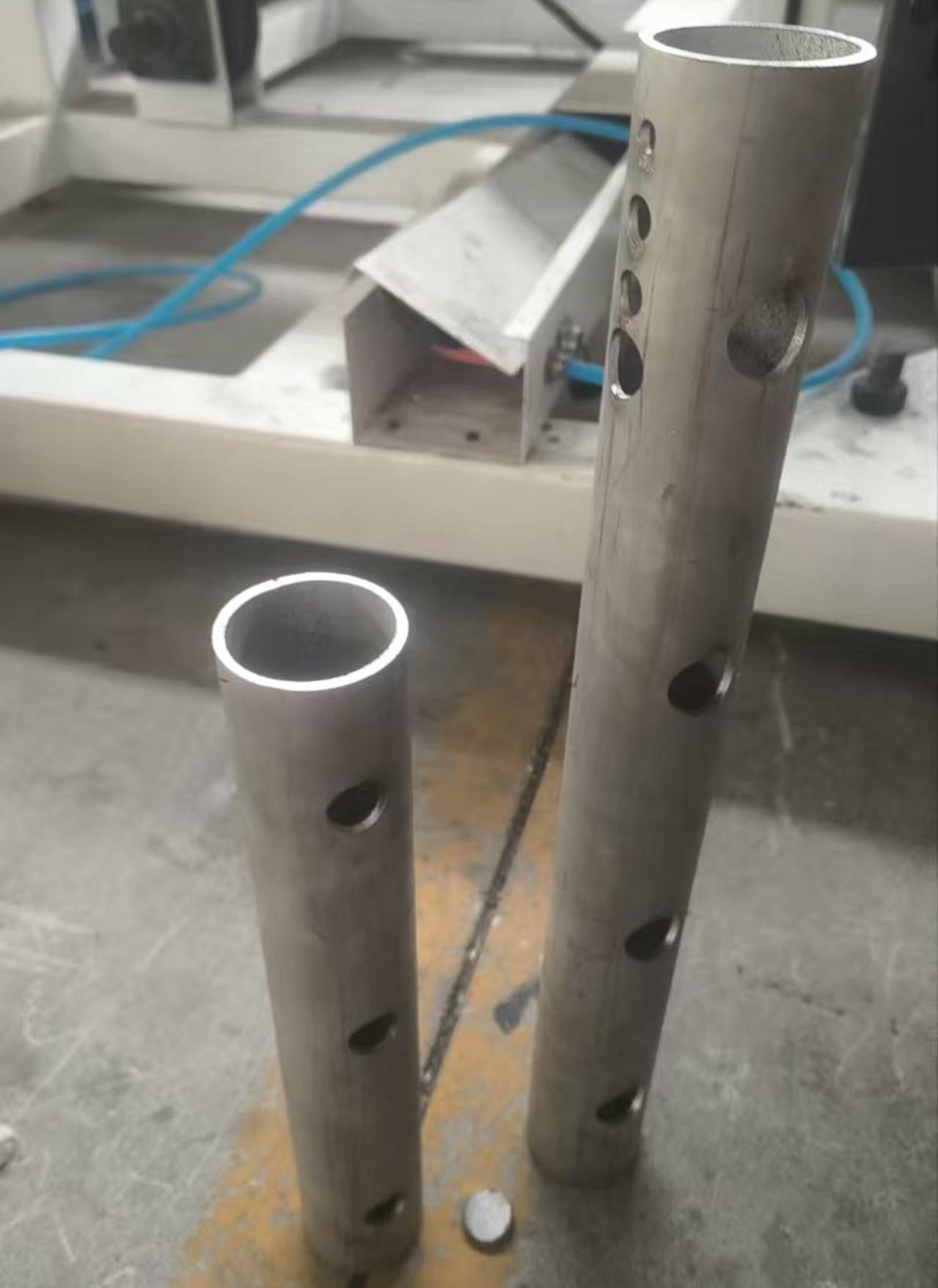

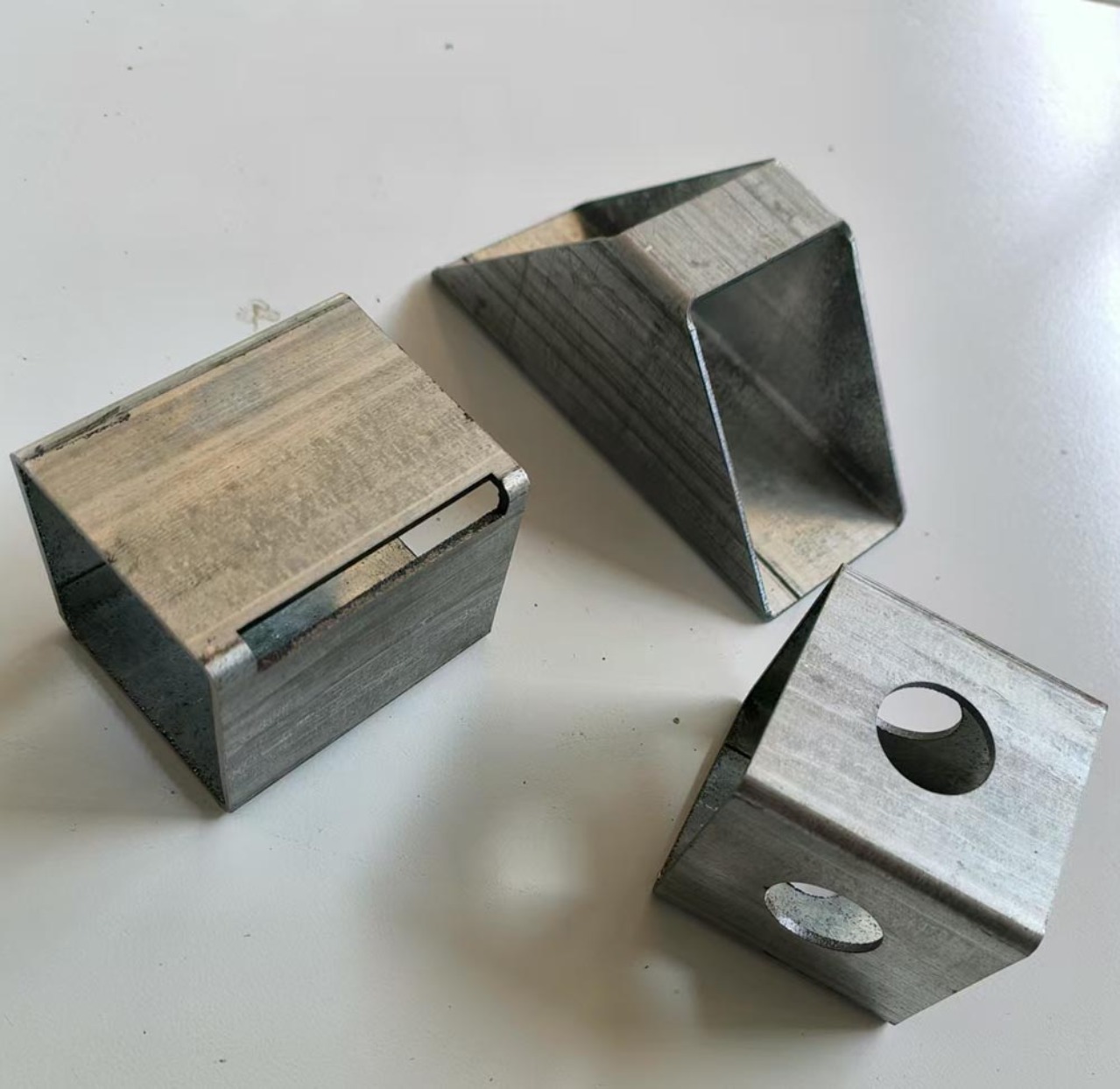

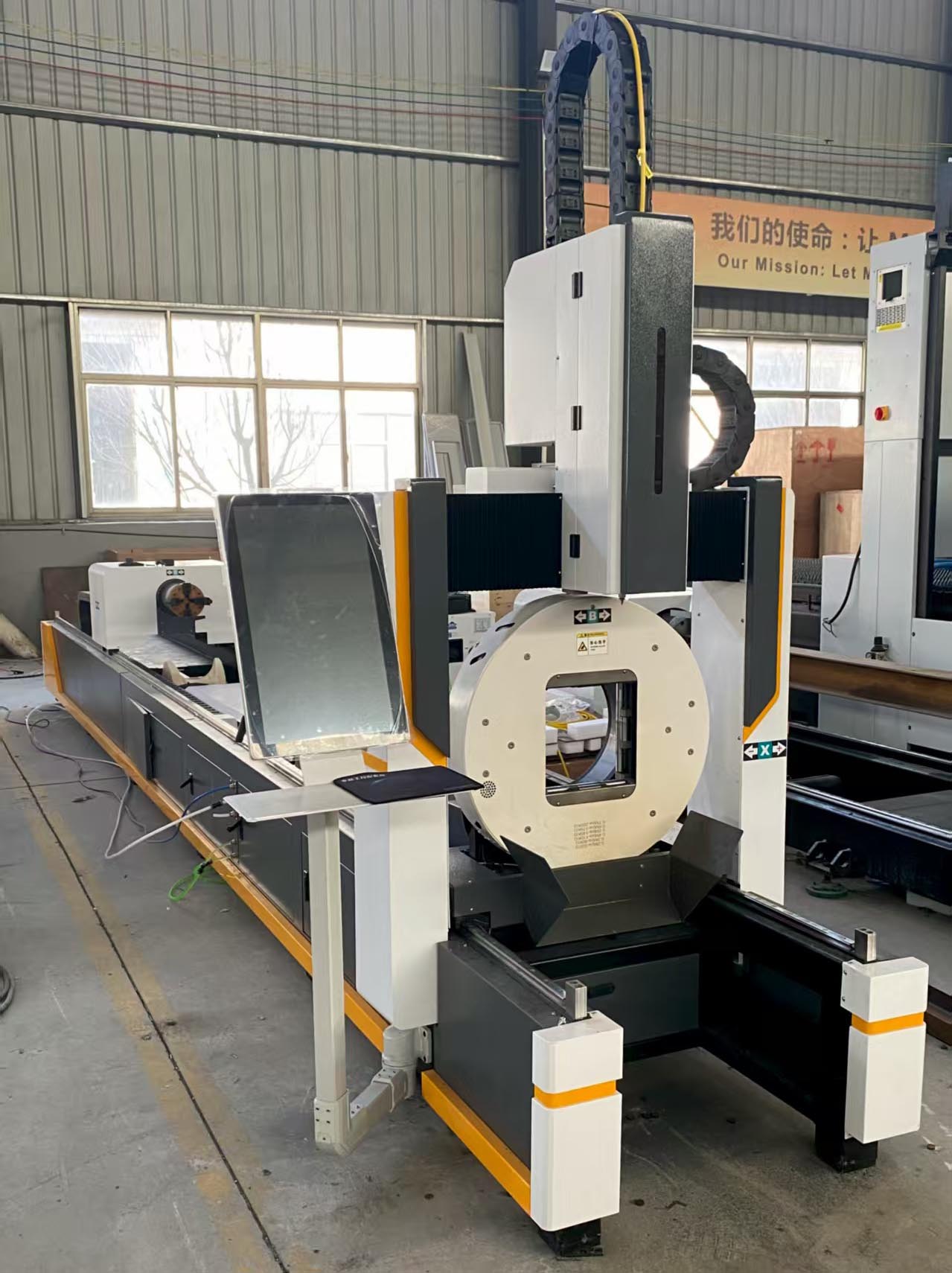

Real Photos

FAQ:

1. Are you manufacturer or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?

We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.

 3.How about your machine quality?

HCY company is a mature brand in CHINA,through our 15 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.

4. What are your payment terms?

We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.

5.Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6.Do you accept customer Logo and customized ?

we accept kinds of customized ,including logo and machine .
