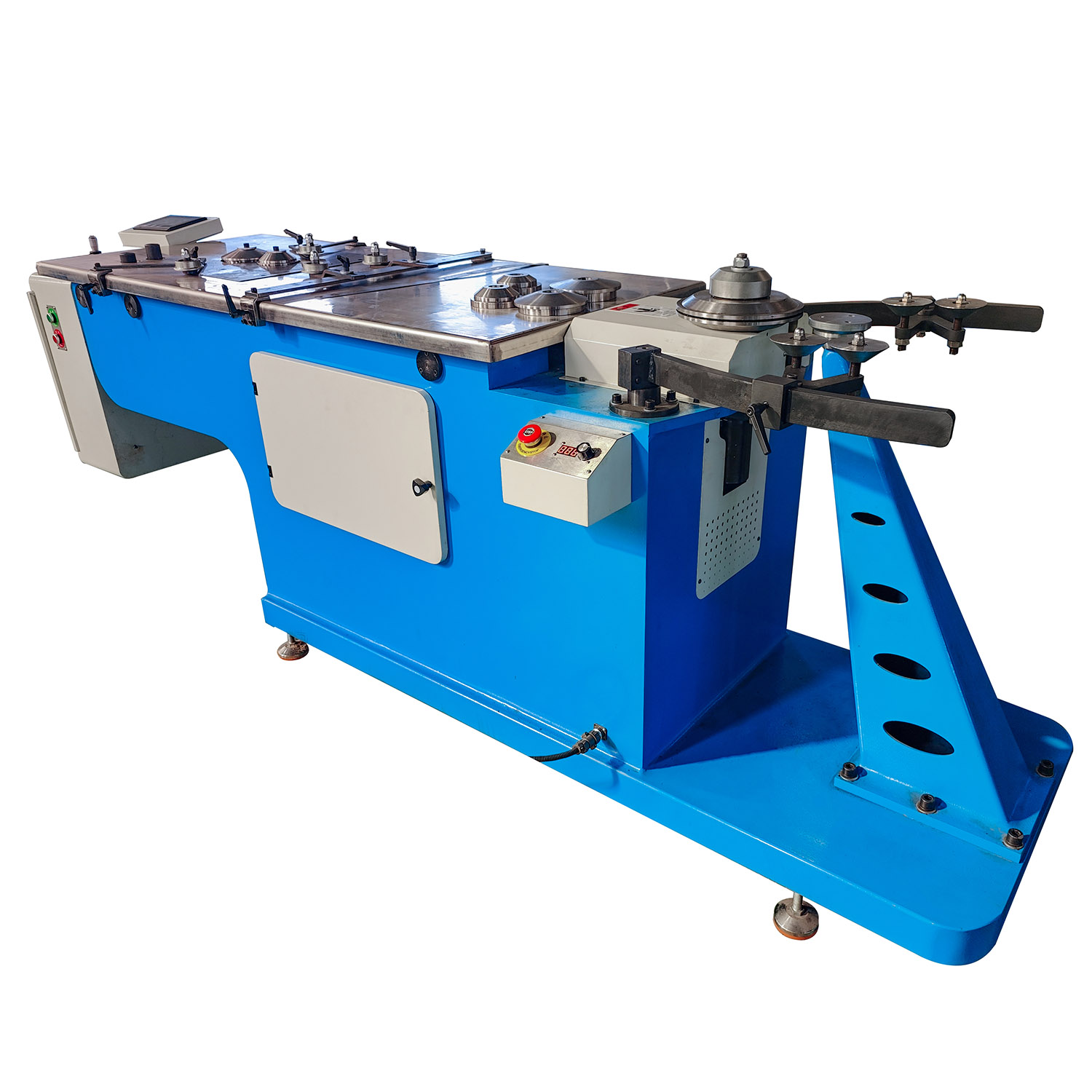

Round Duct CNC Hydraulic Elbow Making Machine

Round Duct Hydraulic Elbow Making Machine

I. Elbow Making Machine's Features:

Machine Frame: Mainly welded with thick steel plates. The worktable is made of stainless steel, sturdy and durable.

Drive System: Full hydraulic drive for stable forming and high efficiency.

Working Device: Two workstations:

Seam Locking Station: Equipped with two locking rolls and two wheeled support arms for strong seam locking.

Forming Station: Equipped with two forming rolls and four positioning wheels for accurate elbow shaping.

CNC Control System:

• • Adopts advanced CNC controller with touch screen operation.
  • Input elbow diameter, angle and thickness; machine works automatically.
  • Forming roll speed and movement controlled digitally for high precision.
  • Seam locking controlled by double foot switch for easy operation.

    ---

II. Technical Parameters

1. Machine name: Round duct CNC Hydraulic elbow making machine

2. Model: HCY-1250

3. Max. thickness: 1.2mm

4. Dia. range: 100-1250mm

5. Motor power: 4kw

6. Weight: 760kg

7. Dimension: 2750x800x1200mm

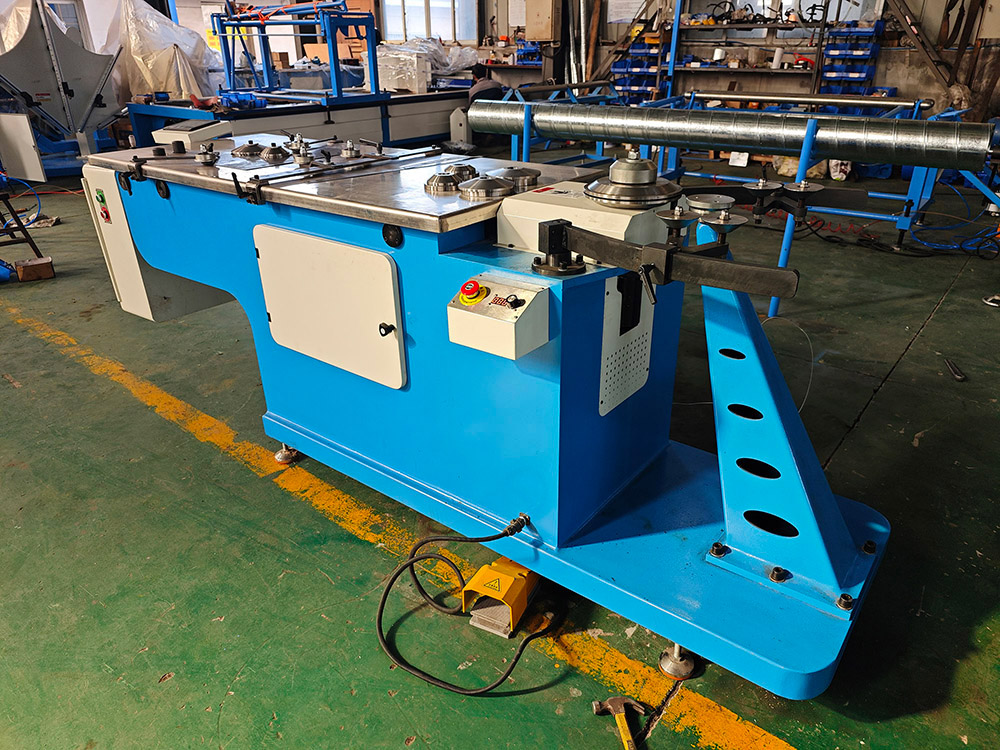

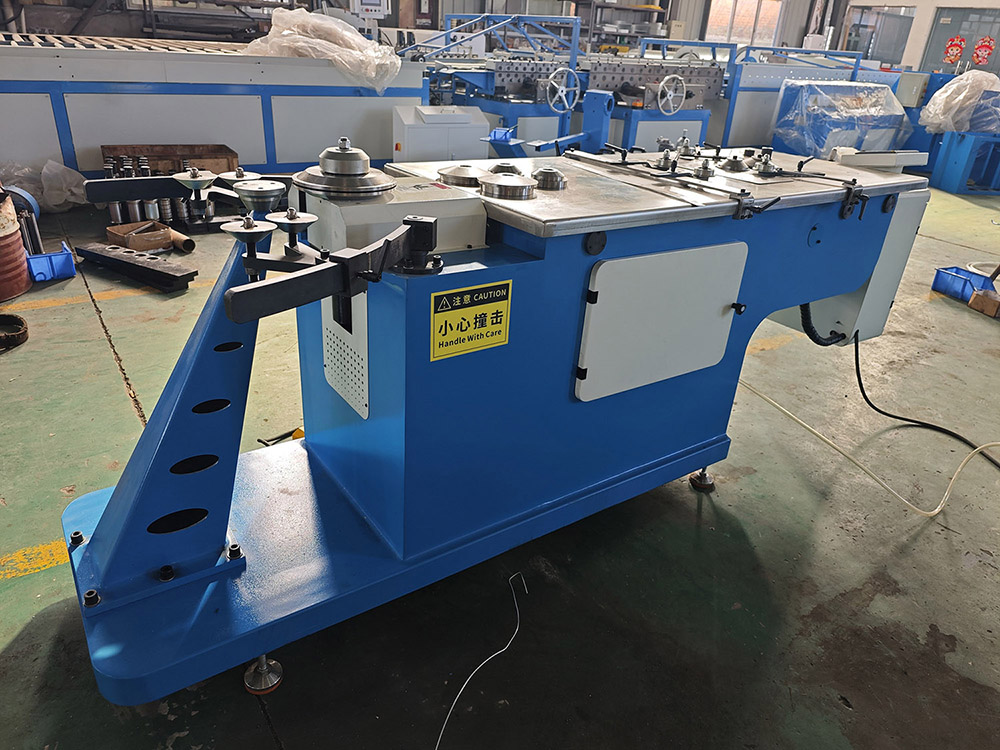

III. Real Photos:

IV. Quality Certifications:

V. FAQ:

1. Are you manufacturer or trading company?

We are manufacturer.

2. What shall we do if don't know how to operate your machine?

We can dispatch our engineers to your country and you can also send your engineers to our factory for learning operation. Besides, there are detailed installation and operating instructions attached, it is very simple. We have telephone and email support at 24 hours per day.

 3.How about your machine quality?

HCY company is a mature brand in CHINA,through our 15 years research in technology,our design including structure and detailed security and precision has enhanced greatly,and can match all the CE standard or more strict standard.Our machines distribute worldwide to about 50 countries where there are metal plate industry And where there are our machines,there are good reputation and terminal user satisfaction.

4. What are your payment terms?

We support T/T, L/C, D/P, D/A, Western Union and so on. TT, 30% in advance, 70% balance before the shipment.

5.Can we be your agent?

Yes,we are looking for Global agent we will help agent improve the market ,and supply all the service like machine technical
problem or other after-sales problem, meanwhile ,you can get big discount and commission.

6.Do you accept customer Logo and customized ?

we accept kinds of customized ,including logo and machine .
